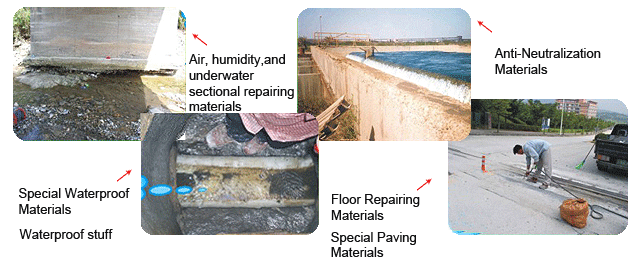

| Concrete structures get to have dry shrinkage and creep, depending on the environment such as temperature and humidity so the structures get cracked or the exterior finishing materials come off. And they also have small watertightness and accordingly, they get to have corrosion, neutralization, and dew. In addition, the structures under ground (internal and external wall) are always exposed to moisture so its adhesion with the main body is poor or weak, which causes several problems. On the contrary, this ceramic Resiscon has similar elasticity with concretes and it has good strength and durability so even under moisture and water, construction work is possible. It is a new environment-friendly inorganic material. |
| |
| Items |
Resiscon |
Remark |
| Specific Gravity |
1.15~1.5 |
Waterpoof materials, sea damage & neutralization preventive materials |
| 1.5~2.5 |
Sectional repairing materials & paving materials |
| Compressive Strength |
40MPa~100MPa |
Sectional repairing materials & paving materials |
| Tensile Strength |
12MPa~15MPa |
Resiscon (Cavity) |
| Bending Strength |
15MPa~25MPa |
Resiscon (Cavity) |
| Bond Strength |
7MPa~20MPa |
Resiscon (Cavity) |
| Neutralization Test |
No Problem |
Resiscon (Cavity) |
| Chloridation Ion Penetration Resistance Test |
0C~5C |
Resiscon (Cavity) |
| Freezing and Thawing Resistance Test |
0%~5% |
Sectional repairing materials & paving materials |
|
| |
|
| |
 |
| |

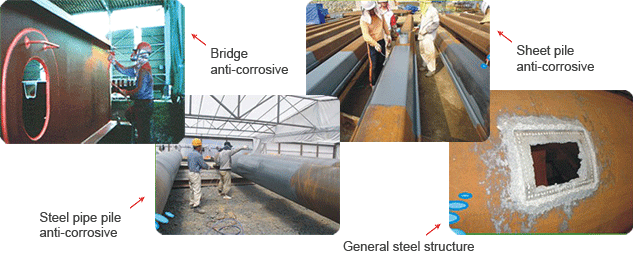

| General steel structures (bridges, steel pipe piles, drainage pipes) are applied with urethane, chlorinated rubber, fluorine resin, water, inorganic matter, and epoxy, but according to the environment, there are many problems in terms of adhesive power and durability. In addition, use of thinner and diluents causes serious environmental pollution like VOC. On the contrary, this ceramic Resisteel system has great adhesive power and its durability is semi-permanent. It is a new environment-friendly anticorrosive material of inorganic and non-solvent type. |
| |
| Items |
Resisteel |
Remark |
Specific Gravity |
1.5~1.8 |
Anticorrosive |
| 1.8~2.5 |
Sectional repairing materials |
| Compressive Strength |
80MPa~100MPa |
Sectional repairing materials |
| Tensile Strength |
15 MPa~15MPa |
Sectional repairing materials |
| Bond Strength |
15MPa~25MPa |
Anticorrosive, sectional repairing materials |
| Salt Spray Test |
7MPa~20MPa |
Anticorrosive |
| Impact Resistance |
No Problem |
Anticorrosive |
| Flex Resistance |
0C~5C |
Anticorrosive |
| Wear Resistance |
0%~5% |
Anticorrosive |
|
| |
|
|
|
|
 |
| |
|
|
|
